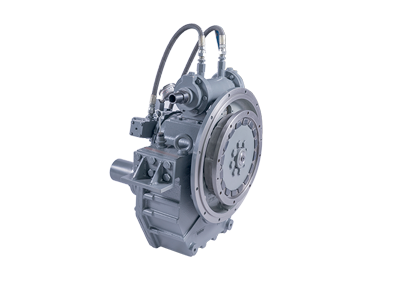

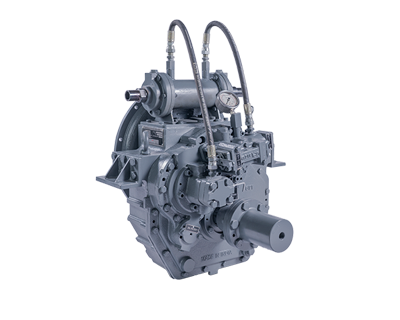

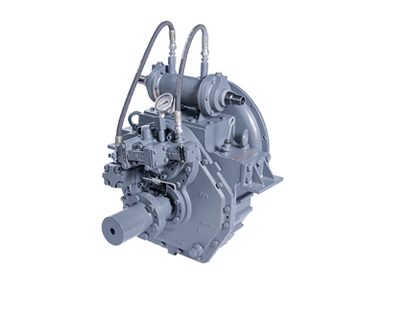

HYDRAULIC GEARBOX HG 7



Specification HG-7
Power Range in HP 100 to 140
Continuous Torque in Kg-m 50
Maximum Speed in RPM 2000
Reduction Ratio 2:1, 3.5:1, 4:1
Weight in Kg (Approx.) 180
Engine Mountings SAE1, SAE2, SAE3



Salient Features

  1. Smooth Actuation & High Reliability
  2. Equal power transmission in both Astern & Ahead direction
  3. Suitable for twin screw application
  4. Smooth and reliable hydraulic shifting with control lever
  5. Emergency come home facility
  6. Low maintenance


Applications

  1. Fishing
    1. Trawling
    2. Purse Seining
    3. Gill Netting
    4. Long Lining
    5. Hook Lining
  2. Ferry Boats
  3. Passenger Boats
  4. RORO Vessels
  5. Tug Boats
