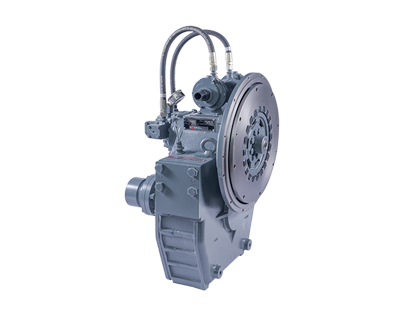

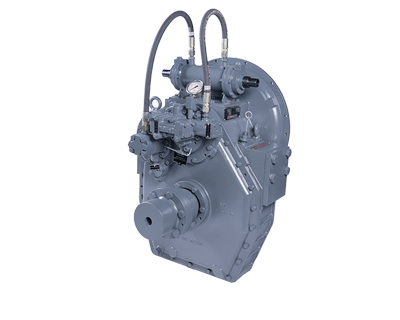

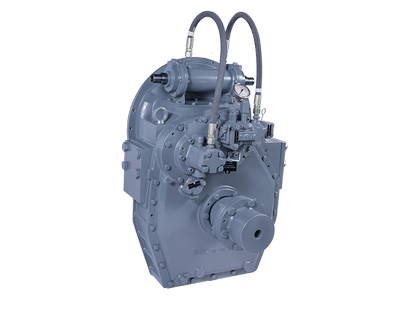

HYDRAULIC GEARBOX HG 13

Specification HG 13
Power Range in HP 240 to 300
Continues Torque in Kg-m 93
Maximum Speed in RPM 2000
Reduction Ratio 3:1, 4:1, 4.5:1, 5.29:1
Weight in Kgs (Approx.) 300
Engine Mountings SAE 1, SAE 2, SAE 3


Salient Features

  1. Smooth Actuation & High Reliability
  2. Equal power transmission in both Astern & Ahead direction
  3. Suitable for twin screw application
  4. Smooth and reliable hydraulic shifting with control lever
  5. Emergency come home facility
  6. Low maintenance


Applications

  1. Fishing
    1. Trawling
    2. Purse Seining
    3. Gill Netting
    4. Long Lining
    5. Hook Lining
  2. Ferry Boats
  3. Passenger Boats
  4. RORO Vessels
  5. Tug Boats
