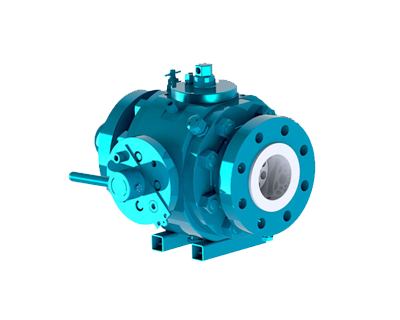

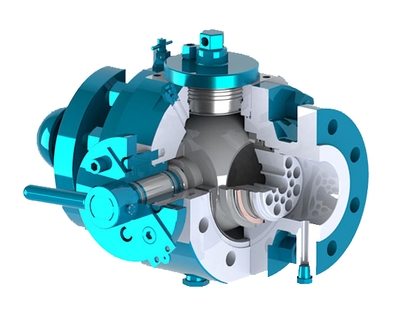

API – 6D Pig Valve Model SHPV

All 6D models are manufactured & monogrammed per API 6D latest Edition ISO 9001, fire tested per API 607 and API 6FA

Specifications

Size : 2” through 12”

Pressure Class : ASME 150 through 1500 PSI

Temperature Rating : - 50⁰F to400⁰F

Qualifies to Standrad

• API 6A
• CE / PED 97/23/EC
• ISO 9001-2008

Applications

• Sweet or Sour petroleum
• Chemical & Processing plants
• Food processing
• Salt water

Salient features

• Double Block and Bleed arrangement
• Energised upstream sealing seat
• Automatic body cavity venting downstream.
• Double Sealed Bonnet, Entry Cap and Adaptors for maximum Safety.
• Wide temperature range –50 to 200 degrees Fahrenheit.
• Emergency Seat Sealant Injection Fittings
• Body cavity vent in entry cap, Lockable Stop Plate in Open or Closed Position
• Positive Shut Off with optional By-Pass valving
